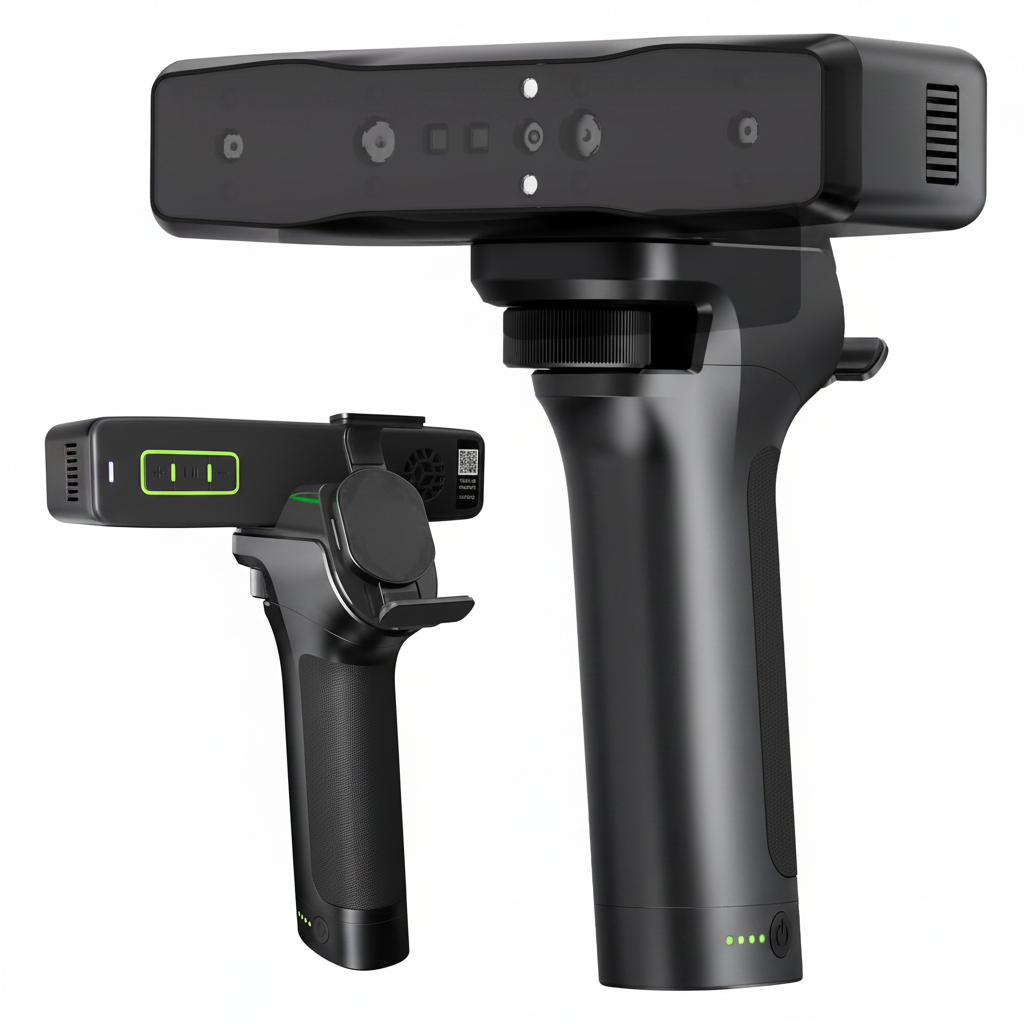

3D Scanner Otter Lite, Handheld Wireless Scanner with 0.05Mm Accuracy, Anti-Shake Tracking, up to 30FPS Scanning Speed

Otter Lite 3D Scanner is engineered with advanced DOE (Diffractive Optical Element) structured-light technology to deliver high-precision scanning across a wide range of object sizes. Designed for versatility and efficiency, it supports both small and large-scale scanning tasks, offering stable performance even in bright environments. With intelligent dual-lens systems, fast capture speeds, and wireless operation, it provides a flexible scanning experience for detailed model creation and digital capture workflows.

Specifications

• Scanning Mode: NIR (infrared binocular structured light)

• Accuracy: 0.05mm @ 100mm

• 3D Resolution: 0.1–2mm

• Scanning Speed: Up to 30fps

• Single Capture Range: Close range: 100×62mm @120mm; 160×130mm @250mm; Long range: 352×254mm @300mm, 788×509mm @600mm, 1460×1017mm @1200mm

• Working Distance: 120–1200mm

• Weight: 300g

• Item Weight: 415g

• Size: 173mm × 39mm × 56mm

• Wireless Scanning: Yes

• Connection Type: USB, Wi-Fi

• Resolution: 2540 dpi

• Maximum Media Size: 2000 × 2000 × 2000 mm³

• Power Source: Battery powered

• Model Name: Otter Lite

Features

• Outdoor Scanning Performance: Designed with structured-light technology for stable scanning in bright environments up to <30000 lux.

• Face & Body Scanning Mode: Uses advanced mapping algorithms to capture detailed surface geometry and supports fast full-body scanning workflows.

• Black & Metal Object Scanning: Captures dark and reflective surfaces without the need for scanning spray.

• Four-Lens Stereo Vision: Dual long-focus and dual short-focus lens systems support both detailed close-range and wide-area scanning.

• Wide Scanning Range: Supports object sizes from 20×20×20mm up to 2000×2000×2000mm for flexible scanning applications.

• Real-Time Scanning Feedback: Indicator lights provide live status updates and allow exposure adjustments during scanning.

• Power-Saving System: Intelligent standby mode helps reduce power usage during inactivity.

• Smart Scanning Software: Includes guided workflows, one-click processing, and editing tools for model refinement.

• Wireless Connectivity: Wi-Fi 6 support with low-latency data transmission for smoother scanning.

• Portable Battery System: 3-hour runtime with fast charging capability (0–80% in approximately 60 minutes).

• High-Speed Capture: Up to 30fps scanning with motion stability and backtracking recovery.

• Anti-Shaking Design: Maintains tracking stability during handheld movement and dynamic scanning conditions.

• True Wireless Connection : Break free from cluttered workspaces with the industry’s first 100% wireless 3D scanner – no USB cables, power cords, or HDMI tethers. Experience uninterrupted 3D capture with our ultra-responsive Wi-Fi 6 + Pogo pin fast data transmition engineered to deliver <10ms end-to-end latency
• Portable Scan Bridge：The ergonomic handheld unit weighs just 330g (0.73lbs) – 35% lighter than bulkier alternatives.3400mAh Li-Polymer battery delivers 3 hours of continuous outdoor scanning. When time is critical, our 40W HyperCharge technology refuels the battery from 0% to 80% in just 60 minutes.
• High-Speed Scanning at 30 FPS—Stable, Even Freehand：Scan large objects in record time with 30 frames per second capture rates. Proprietary One-Shot 3D Technology ensures stability during handheld operation, maintaining orientation through motion or brief pauses. Seamless backtracking instantly resumes scans if interrupted, eliminating data gaps.
• Anti-Shaking Design：Equipped with One-Shot 3D imaging technology, the Otter Lite minimizes tracking loss and provides a stable scanning experience. The built-in anti-shaking features, along with fast backtracking, ensure that users can move around larger objects or work in environments where stability may be a concern without compromising data quality
• Software Free Forever, Always Evolving: Creality has taken care to provide a robust solution with the CrealityScan app. Designed with both ease of use and professional features in mind, the software includes step-by-step tutorials, one-click model processing, and advanced editing tools that simplify the entire scanning process—from initial capture to final model refinement. Key functionalities such as point cloud editing, global marker scanning, and dedicated face and body modes (which enable rapid human body scans in as little as two minutes) highlight the software’s versatility.
• Your All-Around Solution for 3D Scanning Whether scanning a tiny figurine or a massive car tire, the Creality Otter Lite excels at both extremes. Its innovative quad-lens system (featuring dual long- and short-focal-length lenses) dynamically adapts to object size variations. Capture intricate details on jewelry or expansive structures like furniture—no lens swaps or module changes required.Scanning Range: 20 × 20 × 20 mm³ to 2000 × 2000 × 2000 mm³
